Fume Extractor (S-981-2B Bench-Top)

DESCRIPTION:

The S-981-2B Bench-Top Fume Extractor is a Multi-Purpose, Self-Contained, Fume Extraction System. This Two-Stage Filter System is a Source Capture air cleaner which captures airborne contaminants directly at the source and safely removes them before clean air is released into the room. The filtered air results in optimal working conditions and higher productivity in the workplace, with lower costs in energy and housekeeping.

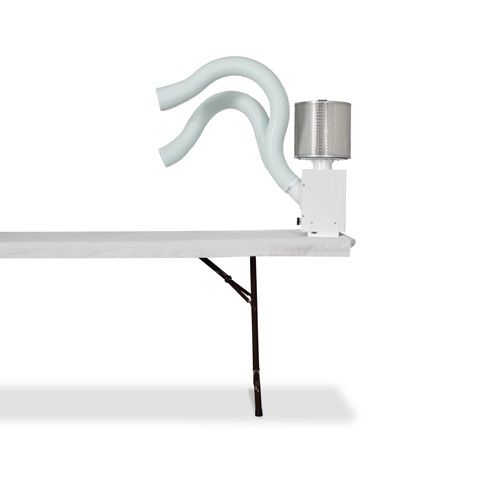

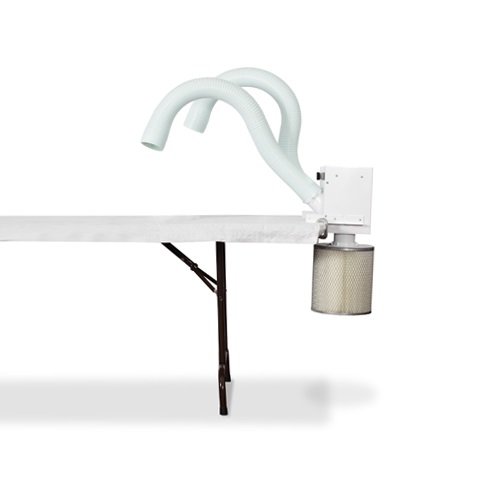

Each The S-981-2B Bench-Top Fume Extractor system comes with two sets of mounting brackets to attach easily to table or bench-top, with the filter extending above or below. System also comes with two 3” Diameter, self-supporting articulating extractor arms. Arms are made of heavy-duty, chemical, abrasion, and heat resistant polypropylene with flame retardant characteristics. Reach is from 36” to 53”. The ends of the arms can be flared up to 4 1/2” in diameter or as small as 2” in diameter. Unlike other systems on the market, our unique extractor arms have no internal supports or articulated bends, which restrict airflow. CFM is increased by up to 50% over internally supported arms.
The portability of the S-981-2B Bench-Top Fume Extractor makes it ideal to use in general applications and locations, including difficult to reach places.
Multiple Filter combinations available to accommodate countless applications that require- Fume, Dust, Smoke, and Vapor removal.

Includes:
• (2) Self-Supporting 3” Diameter Source-Capture Extractor Arms
• (2) Sets of Mounting Brackets
• Inlet Cap to close off inlet- For single Arm use
• Power Cord with Plug

SPECS:

Electrical:
Blower/Motor Assembly is totally enclosed & thermally protected; Ball bearing; capacitor start. Typical motor life – 100,000 hours, Depending on operating conditions, including ambient temperature, Duty cycle, etc.

Blower:
350W, 2.8 amps, 120/1/60, 2000 RPM, Variable speed control & power cord w/ plug.

Cabinet:
14 Gauge Steel. Baked Polyurethane powder painted (exterior and interior).

Standard Dimensions:
12” W x 10” H x 7” D (Not including arms and filter)

Standard Weight:
28-39 lbs. depending on options.

Extractor Arms:
(2) 3” Diameter Self-Supporting Extractor Arms
• Made of Chemical and Abrasion Resistant Polypropylene.
• Withstands Temperatures from -40 to 180° F

Performance:
*Duct Velocity through Standard Extractor Arms
Average – 3800 FPM Extractor Arm velocity with one Extractor arm in use.
Average – 2250 FPM Extractor Arm velocity with two arms in use.

Noise:
65 dBA, with standard high capacity cartridge and two extractor arms.
*Note: Velocity is based on a clean standard filter cartridge. Performance varies with other filter combinations.
