Rodent Surgical Monitor

DESCRIPTION:

Rodent Surgical Monitor, Indus “Creating solutions that advance life science research and improve human health”

is an advanced, integrated surgical warming and vital signs monitoring solution for preclinical research in mice, rats and other small animals. The system provides detailed information, in real time, regarding subject body temperature, ECG, heart rate and respiration. heart rate, and pulse oximetry (SpO2) measurement.

The unit consists of three components: Heated Surgical Platform, Temperature Probe and
9.7” Touchscreen Display Unit.

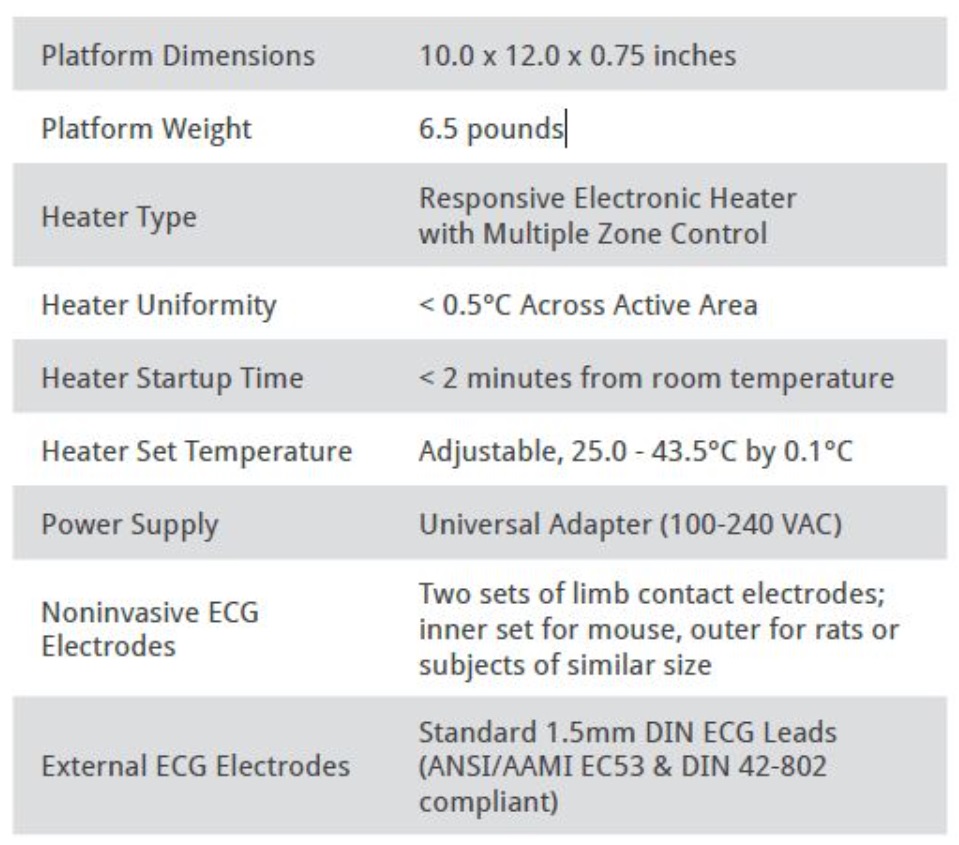

Rodent Surgical Monitor Technical Info:

Platform Dimension:  10.0 x 12-0 x 0.75 inches

Platform Weight:  6.5 pounds

Heater Type:  Responsive Electronic Heater with Multiple Zone Control

Heater Uniformity:  < 0.5°C Across Active Area

Heater Startup Time:  < 2 minutes from room temperature

Heater Set Temperature:  Adjustable, 25.0 – 43.5°C by 0.1°C

Power Supply: Universal Adapter(100-240 VAC)

Noninvasive ECG Electrodes:  Two sets of limb contact electrodes; inner set for mouse, outer for rats or subjects of similar size

External ECG Electrodes:  Standard 1.5mm DIN ECG Leads (ANSI/AAMI EC53 & DIN 42-802 compliant)

**Pressure Catheter Option for RSM+
— Includes software and firmware update, along with
catheter connection cable

**Doppler Probe Micropositioner for RSM+
Non-Magnetic Thumbscrew Adapter

Contact Us For A Quote
